Studio Tenant Improvement

This project is a single-story studio renovation. The plan includes a lobby, mat studio, reformers room, spa room, contrast therapy room, locker room, restrooms, office, breakroom, laundry/storage and a covered patio.

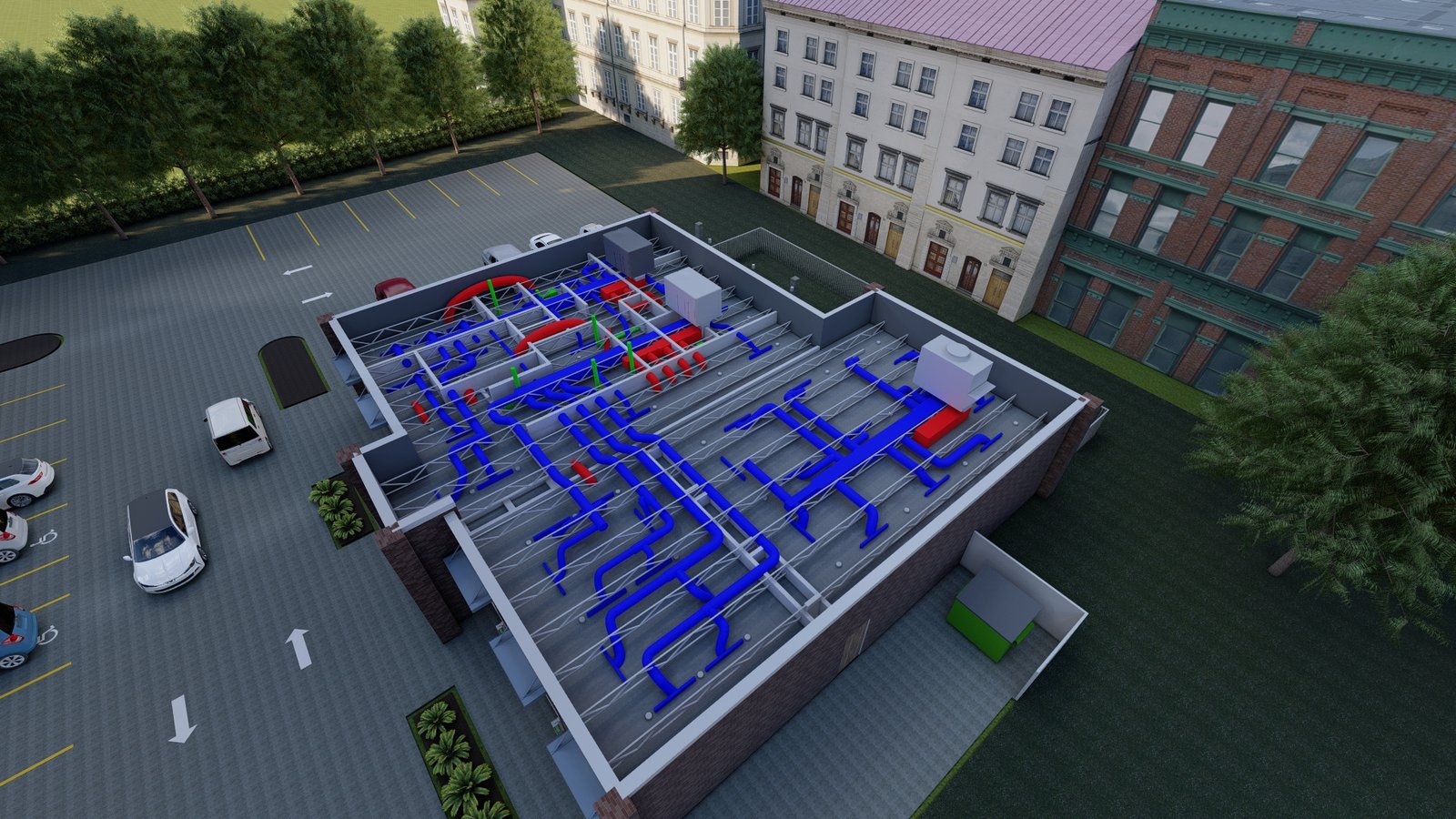

Forma prepared the mechanical and plumbing permit documents. The mechanical design uses four rooftop heat pump units with hot gas reheat, ducted supply and return, and ceiling exhaust fans for restrooms, showers, the sauna and the locker room.

The plumbing design covers sanitary waste and vent, domestic hot and cold water with a recirculation pump, and fixture connections. The sheets also include water supply pressure and fixture unit calculations.

• Rooftop heat pump units RTU-1A, RTU-1B, RTU-2 and RTU-3 with roof curb and sequence of operation
• Supply, return and exhaust ductwork layout with sized duct runs and air device airflows
• Seven ceiling exhaust fans (EF-1 to EF-7) serving restrooms, showers, sauna and locker room
• Dryer vent and kitchen exhaust routing to the roof
• Sanitary waste and vent plans, tied into an existing waste line
• Domestic hot and cold water with electric water heater WH-1 and circulation pump CP-1
• Plumbing fixture schedule and connection sizes
• Water supply pressure and fixture unit calculations based on the 2024 IPC

The studio is a renovation, so new work had to connect to existing waste and incoming water lines whose exact locations are verified in the field. The drawings flag these tie-in points on the plans.

Rooftop equipment also had to be coordinated with roof edge clearances, structure and outside air intake separation from exhaust discharges.

The mechanical plans show outside air balancing values for each rooftop unit and require a minimum 10 ft separation between exhaust terminations and outside air intakes. Notes call for fire/smoke dampers at rated wall crossings and remote volume damper operators where ceilings are not accessible.

The roof plan notes fall-protection guards for equipment within 10 ft of the roof edge. The plumbing sheets include key notes for tying into existing lines and upsizing the incoming line as required.

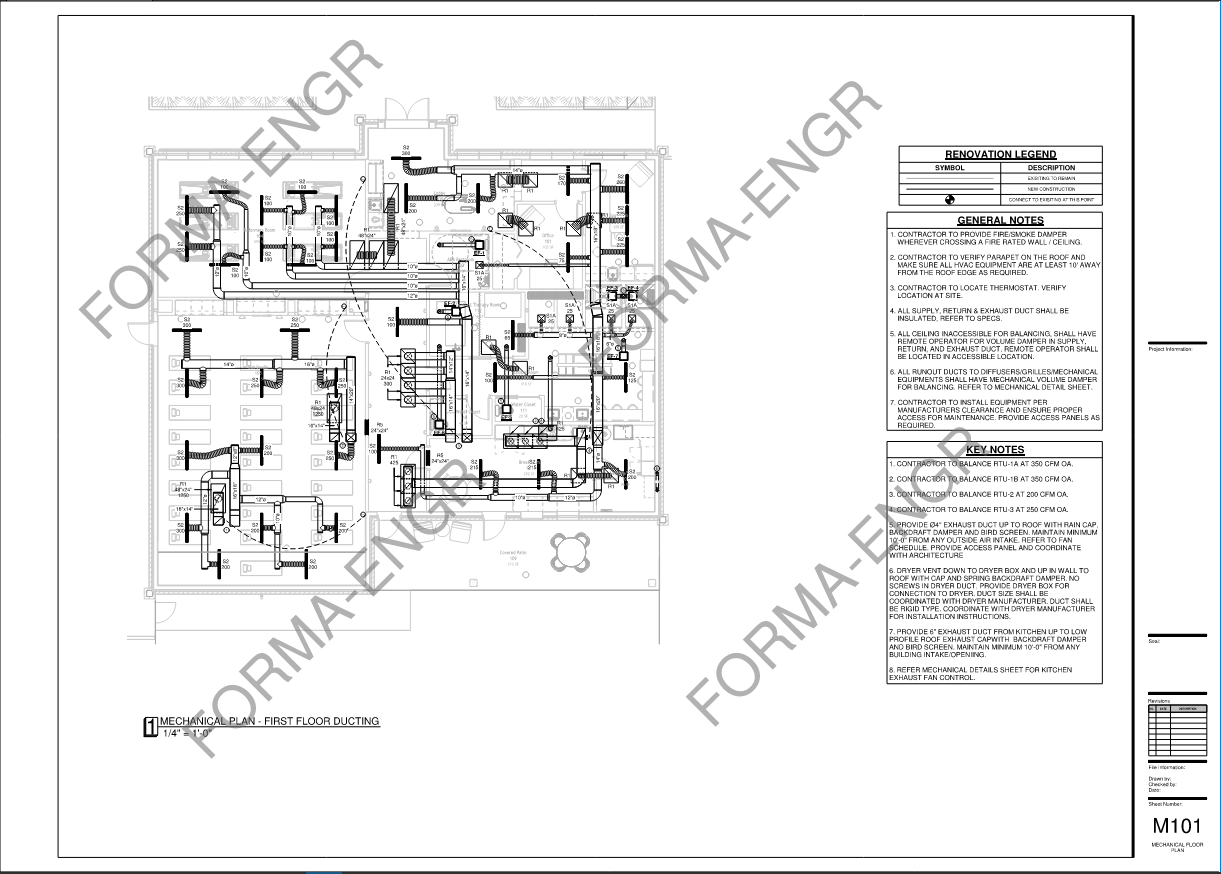

• M101 Mechanical Floor Plan
• M102 Mechanical Plan Roof
• M103 Mechanical Ceiling Plan

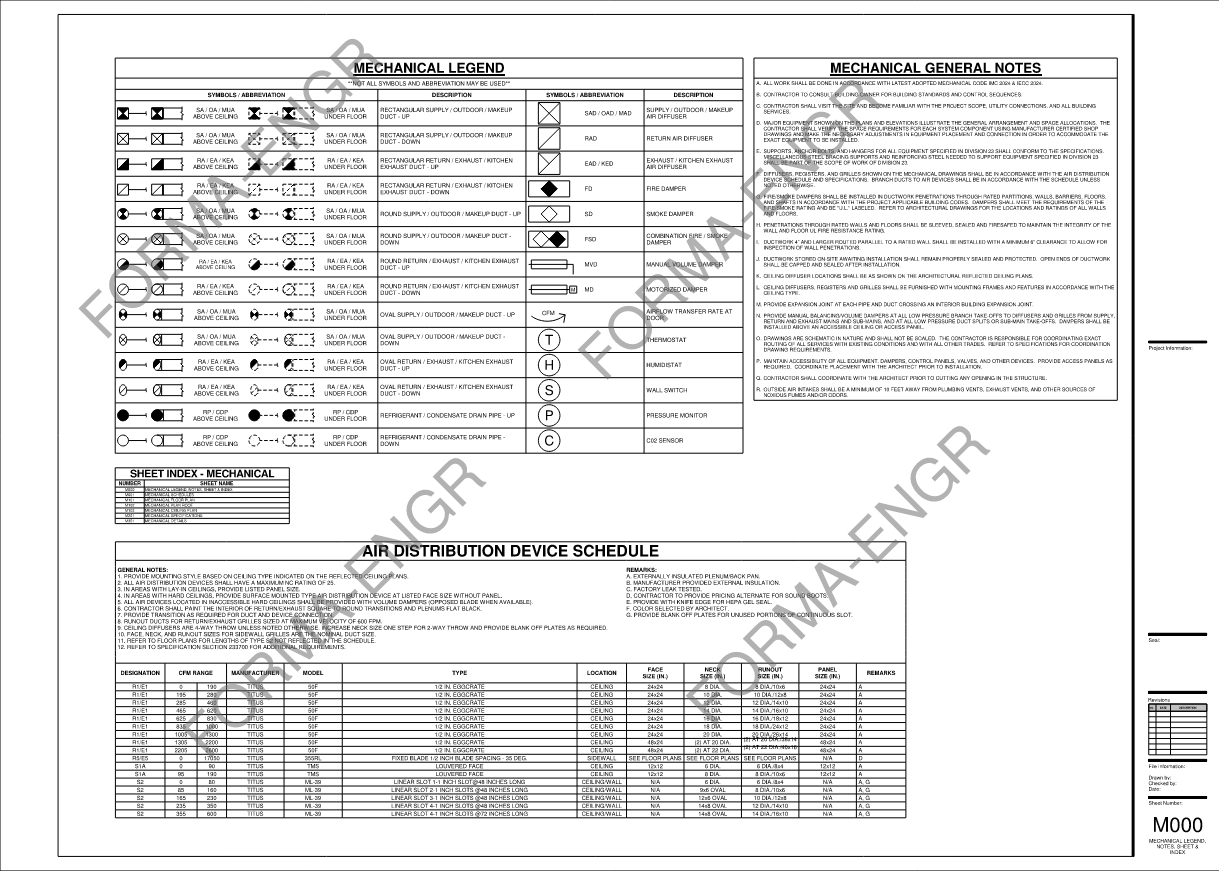

• Mechanical general notes, fan schedule and rooftop heat pump unit schedule with sequence of operation
• Mechanical specifications and installation details (exhaust fan, diffuser, volume damper, rooftop unit curb, dryer vent)
• P001 Plumbing Schedules, including equipment schedule, fixture connection schedule, supply pressure calculation and fixture unit calculations
• P101 Plumbing Plan Waste
• P102 Plumbing Plan Vent
• Plumbing water plan (hot, cold and recirculation)
